How Paint Curing Works

What Curing Means

Paint goes on as a liquid and ends up as a hard film. Some of that change is drying, as solvent or water leaves the paint. In two-pack (2K) products a chemical reaction also hardens the film, and a finish can feel dry well before it reaches its full hardness.

A fresh repair therefore needs gentle handling after collection, and the waiting times between workshop stages matter.

Drying Versus Curing

Drying happens as the solvent or water in the paint evaporates and the film firms up. Waterborne basecoat dries this way, so moving air helps it and damp weather can slow it. The basecoat carries the colour. Once it has had the drying time the paint maker gives, clear lacquer goes over it to give the gloss and protect it.

In 2K lacquers and primers, curing is a chemical change. They are mixed with a hardener just before spraying, the two parts start to react, and the film keeps hardening for some time after it is touch dry. Not every paint product hardens this way, so the paint maker's instructions give the times for each one.

How Two-Pack Paint Hardens

In a 2K lacquer, the resin and the hardener react to form cross-links, chemical bonds that join the resin molecules together. As more of them form, the lacquer gets harder and more resistant to chemicals, though the level depends on the product.

Mixed 2K paint has a limited pot life, given by the paint maker, and it should be used within that time even if it still looks runny. Hardeners come in different speeds, so the reaction can suit the temperature and the size of the job.

The Stages From Spray Gun to Full Hardness

A fresh finish usually passes through stages like these. Not every data sheet lists all of them, and the times differ between products and temperatures.

1. Flash-off: the short wait between coats while some solvent or water leaves the film. Spraying the next coat too soon can trap it.
2. Dust-free: the paint maker's point at which dust settling on the surface should no longer stick in it.
3. Touch dry: the surface can be touched lightly, as the paint maker defines it, though the film may still be hardening.
4. Ready to handle: the panel can be handled and the car moved, with care.
5. Ready to polish: on a gloss lacquer, the point at which the data sheet allows small dust specks to be sanded out and polished, which can come before full cure.
6. Full cure: the film has finished hardening, which not every data sheet gives a time for.

The paint maker's technical data sheet usually gives flash-off and drying times at a stated temperature.

What Speeds Curing Up or Slows It Down

Warmth speeds the reaction and cold slows it, so the same lacquer can take much longer to harden in a cold unit than in a warm one.

Film thickness matters too. A heavy coat holds more solvent and can slow drying through the film. Even coats, with the flash-off from the data sheet between them, help the film harden evenly.

Humidity has a strong effect on waterborne basecoat, because damp air slows evaporation, and it can affect other products as well. Some 2K hardeners react with moisture in the air, which is why paint makers advise keeping hardener tins sealed.

Primer and Filler Need to Cure Too

Each layer under the colour has its own drying or curing time. Polyester body filler, the common type, hardens through a reaction with its hardener paste and has to be hard before it is sanded. A primer that will be sanded needs to reach the sanding time on its data sheet first, or it can keep shrinking and let sanding marks show through the colour. Some primers are made to be painted over after a short flash-off, without sanding.

On a panel dent repair and respray, the dent is worked out where it can be, then filled and primed as the damage requires, and each layer gets the drying time its maker gives before the next goes on. A SMART repair is used on a small, localised area, and its steps depend on the damage. Minor scratches and chips usually take 1 to 2 days, and small jobs are sometimes finished the same day.

Plastic Parts and Curing

Plastic bumpers flex, and they soften with heat. Bare plastic usually needs a primer or adhesion promoter made for plastics, and some paint systems add a flexible additive to help the finish cope when the bumper flexes. A bumper repair follows the paint maker's methods for plastic parts.

Faults Linked to Drying and Curing

These faults show up in fresh paint and have more than one cause, such as heavy coats, the conditions when it was sprayed or the surface underneath:

• Soft lacquer: it marks under a fingernail, a polishing pad or a brush wash.
• Solvent pop: small pinholes or blisters where trapped solvent forced its way out, often after a heavy coat.
• Die-back: the gloss fades after the repair, and remaining solvent leaving the film is one possible cause.
• Sinkage: the paint shrinks into sanding marks or filler edges, which then show through.

A fault in the top of the lacquer can sometimes be polished out once the paint is ready for it, while a deeper fault means sanding back and painting again. Which one applies is judged at inspection.

Looking After Fresh Paint

Ask us at collection when the car can first be washed, polished or waxed. Each can have its own waiting time, and the times depend on the products used on your repair. When you do wash it, use a soft mitt by hand rather than a brush wash, and keep pressure washers away from the new paint.

Once the paint has fully cured, a ceramic coating can add a protective layer. Our paint protection and detailing service can follow a full body respray once the paint has cured, with machine polishing and paint protection rather than a ceramic coating.

Talking to Us About a Paint Repair

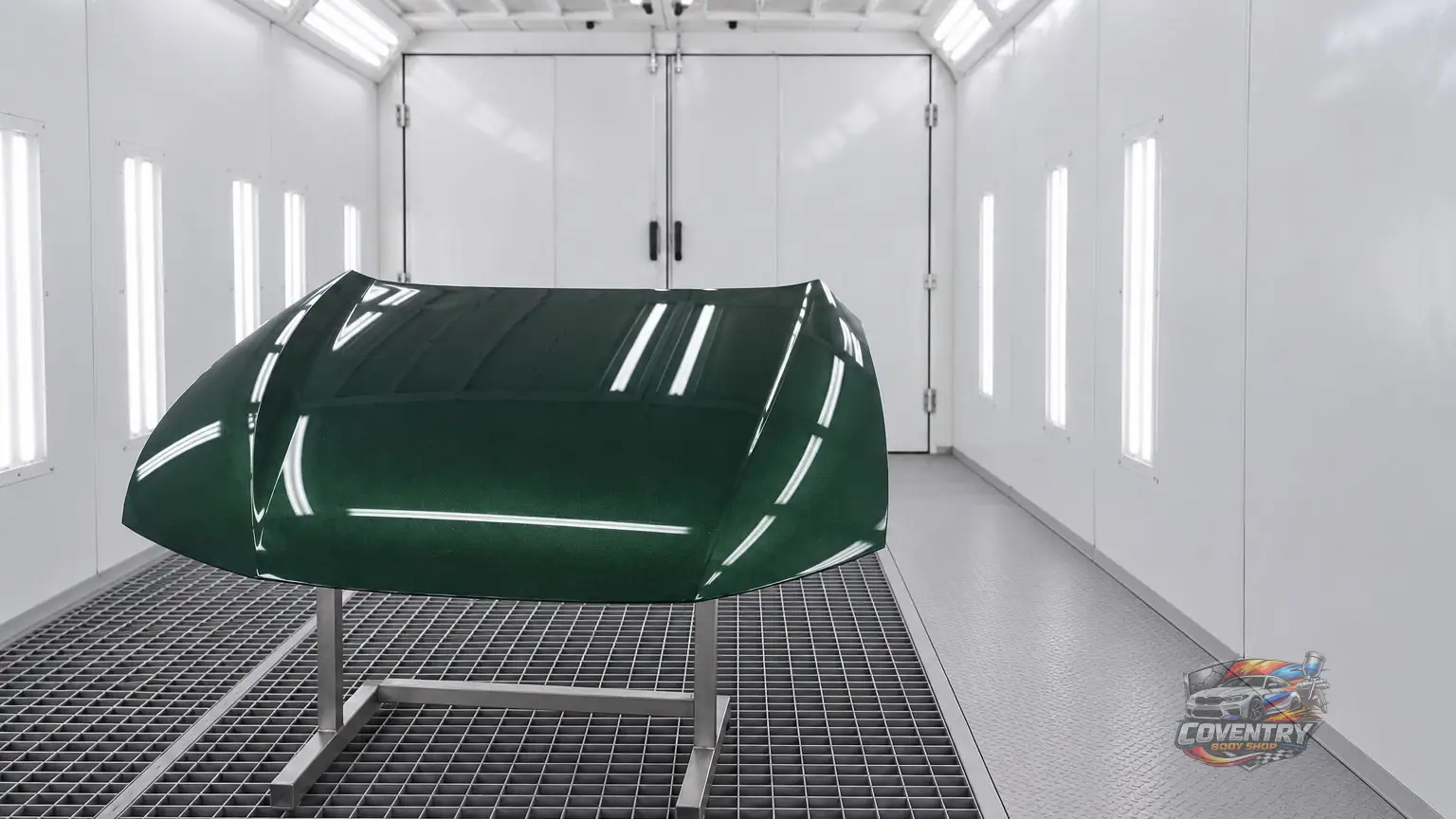

All paintwork at Coventry Body Shop in Wyken is sprayed in our spray booth, to the paint maker's and the vehicle maker's methods. To ask about a paint repair, send photos by WhatsApp or through the Send enquiry button and book an inspection. A small inspection is free; a deeper inspection costs from £200 plus VAT (£240 including VAT), deducted if the repair goes ahead. You get a quote before any work starts, and our workmanship guarantee runs for 6 months from collection.
